| OUTPUT |
|
|
| Voltage |
- |
230
+/- 1% |
| Phase |
- |
Single |
| Frequency |
- |
50
Hz +/- 0.5% |
| Waveform |
- |
Sinusodial |
| Harmonics
Distortion |
-
|
Total
harmonic distortion less than 2% on linear load
Total harmonic distortion less than 5% on non-linear load |
| Transient
Recovery |
- |
1
to 100% load change within 20 mins |
| Overload
Rating |
- |
100%
continuos
150% for 60 sec. |
| Transient
Recovery |
- |
1
to 100% load change within 2 oms |
| Inverter
Utility |
- |
Load
is continuously on inverter |
| Power
Factor |
- |
0.8
lag to unity |
| Inverter
utility |
- |
load
is continuos on inverter. |
| Isolation
load Ripple contents |
- |
2mv
maximum |
| |
|
|
| |
|
|
|
|
| |
Input/output
over-voltage |
|
| |
Output
overload |
|
| |
Output
short circuit |
|
| |
Battery
over charge |
|
| |
Battery
deep discharge |
|
| |
Spike
suppression |
|
| |
|
|
|
Indications: |
| Mains
ON, Inverter ON, Load on Mains, Load on Battery Inverter overload,
Low Battery. |
| |
|
|
| Alarm: |
|
|
| Overload
alarm |
|
|
| Low
battery alarm |
|
|
| System
trip alarm |
|
|
| |
|
|
| System: |
|
|
| Efficiency
- Inverter> 85-90%, overall>90% |
|
| Audio
Noise - <35db@ 1 meter |
|
| |
|
|
| Environment: |
|
|
| Operating
Ambient Temperature |
- |
0-45
degree Centigrade |
| Storage
Temperature |
- |
0-70
degree Centigrade |
| Relative
Humidity |
- |
0
- 95% RH (Non-condensing) |
| |
|
|
| Battery: |
|
|
| Battery
type |
- |
Lead
Acid, Maintenance Free, SMF. |
| Battery
Voltage |
- |
24V
to 120V DC |
| Battery
charger |
- |
CVCC
charger (Boost + Trickle charging) |
|
|
|
| Meters: |
|
|
| Output
voltmeter |
|
|
| Output
DC AMP Meter |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Data
Processing |
|
| |
Process
Control |
|
| |
Telecommunications
Systems |
|
| |
Medical
Equipments |
|
| |
Instrumentation
and other Sensitive Equipment |
|
|
| |
|
|
| |
|
|
|
DESIGN
FEATURE & BENEFITS
|
| |
|
Jet - Electro, a total power solution company
introduces the JET- Electro UPS specially designed for Indian
power condition. It provides safe output to personal computers,
LAN servers and other sensitive electronic instruments, protecting
the equipment and data against power loss, spike, transient,
surge, brown out and black out.
|
|

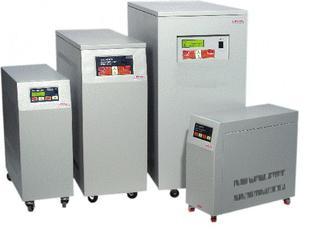

The JET-ELECTRO ONLINE UPS provides an independent, no break
source of clean, stable, transient free uninterrupted power
supply with output neutral bonded to ground, protect critical
loads against power line disturbances and loss of commercial
power. The UPS given an accurately controlled sinusoidal AC
output without all line disturbances.
|
| |
|
|
| |
|
|
| |
|
|
